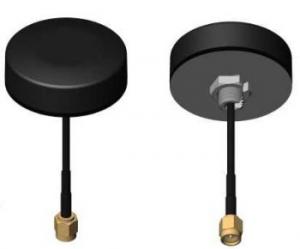

LTE Antenna, 2.5db, RG174, 3m Cable, SMA/Male,IP67 protection (LTE-G-003L)

Favori Teklif Paylaş

522 kere görüntülendi

LTE Antenna

Frequency Range: 698~960MHz/1710~2690MHz

Polarization: Linear

Gain: 2.5dBi(Zenith)

V.S.W.R: <3.0

Impedance: 50Ω

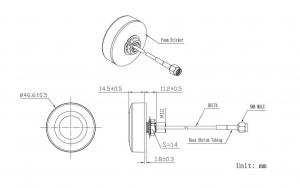

Mechanical

Cable: RG174

Connector: SMA/MCX/FAKRA or others

Radome Material: ABS

Mounting Method: Screw



Environmental

Operating Temperature: -40°C ~+85°C

Relative Humidity: Up to 95%

Ingress Protection: IP65~IP67 (exclude cable outlet)

Vibration: 10 to 55Hz with 1.5mm amplitude 2hours

Environmentally Friendly: ROHS Compliant
