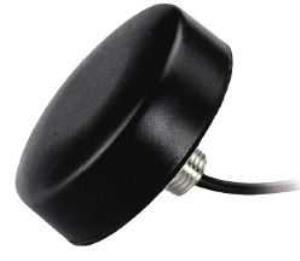

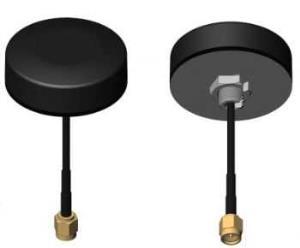

LTE-A-003 GPS Anten

Frequency

:

1575.42±1MHz

Band Width

:

CF±5MHz

Polarization

:

RHCP

Gain

:

5dBic(Zenith)

V.S.W.R

:

<1.5

Impendance

:

50Ω

Axial Ratio

:

3dB(max)

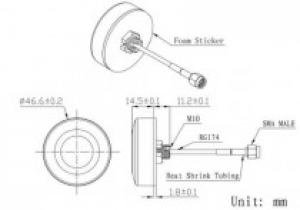

Dimension

:

46*15mm

Gain

:

28±2dB

Noise Figure

:

<1.5

Filter Insertion Loss

:

<3dB

Ex-band Attenuation

:

12dB@CF+50MHz/16dB@CF-50MHz

Supply Voltage

:

2.2~5V DC

Current Consumption

:

5~15mA

V.S.W.R

:

<2.0

Cable

:

RG174 / 3m

Connector

:

SMA/MCX or others

Radome Material

:

ABS

Mounting Method

:

Screw

Operating Temperature

:

-40℃~+85℃

Relative Humidity

:

Up to 95%

Ingress Protection

:

IP67 (exclude cable outlet)

Vibration

:

10 to 55Hz with 1.5mm amplitude 2hours

Environmentally Friendly

:

ROHS Compliant
