2G/3G/4G/LTE Dikey Anten Montaj aparatı dahil
LTE-Q7027F05W-2248
698-2700MHz Ultra Wideband Omni-direction Antenna
Ürün Kodu : LTE-Q7027F05W
|
Electrical |
|
|
Frequency Range |
698-960/1710-2700MHz |
|
Band width |
262/990MHz |
|
Gain |
3/4.5dBi |
|
V.S.W.R |
≤2.5 |
|
Radiation |
Omni-Direction |
|
Horizontal Beam width |
360° |
|
Vertical Beam width |
35° |
|
Polarization |
Vertical |
|
Lightning Protection |
DC Grounded |
|
Maximum Input Power |
100W |
|
Impedance |
50Ώ |
|
Cable Length |
3M |
|

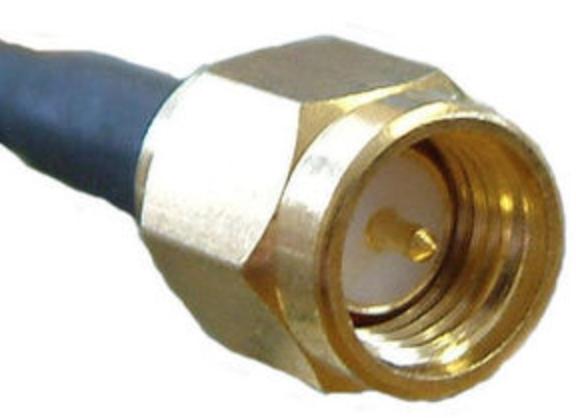

Connector |
SMA male |
|
Antenna Radome Material |
PVC |
|
Mount way |
Wall Mount |
|
Diameter of Installation Pole |
Ø30~Ø50mm |
|
Mechanical |
|
|
Dimensions |
Φ20x320mm |
|
Weight |
250g |
|
Operating Temperature |
-40℃ to+70℃ |
|
Rated wind velocity(m/s) |
60m/s |
|
RoHS Compliant |
YES |
