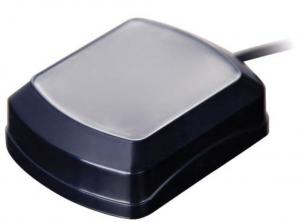

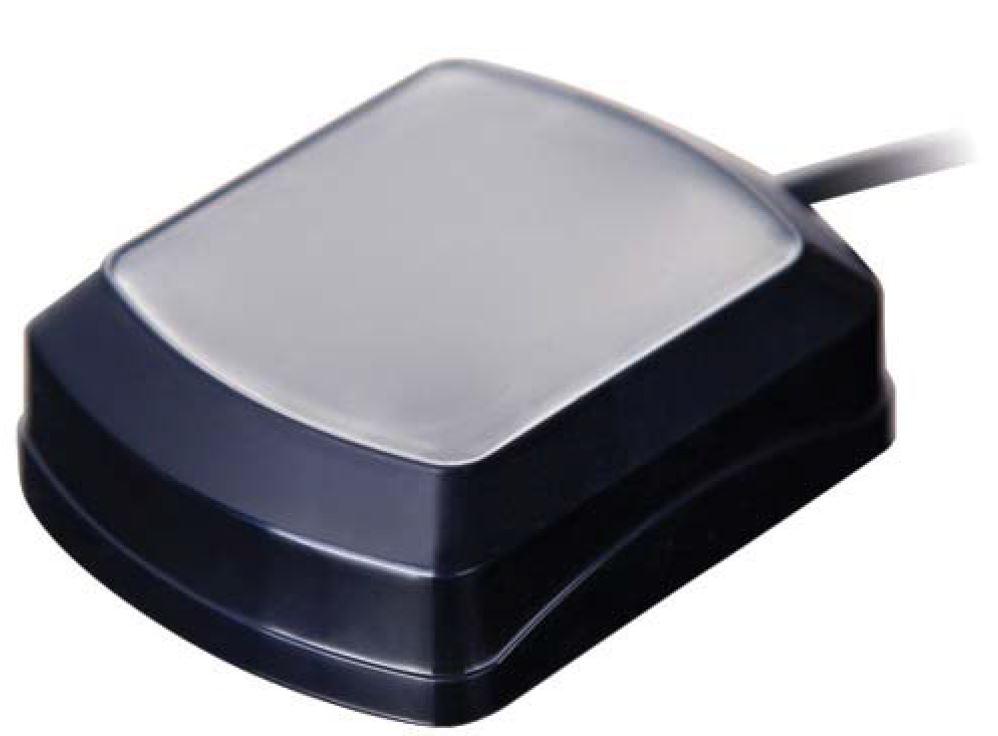

GPS Aktif Anten

28dbi

3m RG174 Kablo

Dış Ortam

SMA Erkek Konnektör

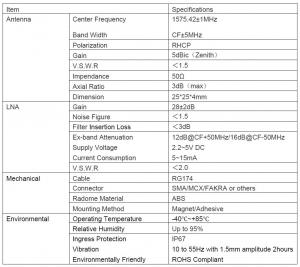

Center Frequency 1575.42±1MHz

Band Width CF±5MHz

Polarization RHCP

Gain 5dBic(Zenith)

V.S.W.R <1.5

Impendance 50Ω

Axial Ratio 3dB(max)

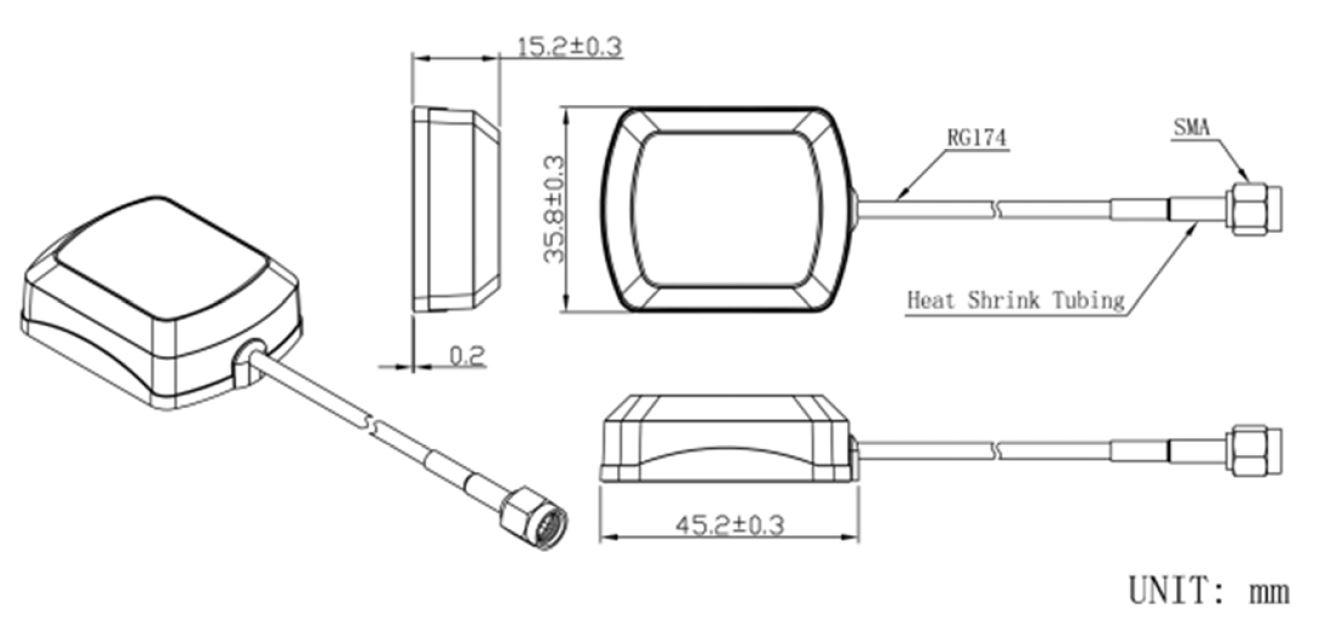

Dimension 25*25*4mm

LNA Gain 28±2dB

Noise Figure <1.5

Filter Insertion Loss <3dB

Ex-band Attenuation 12dB@CF+50MHz/16dB@CF-50MHz

Supply Voltage 2.2~5V DC

Current Consumption 5~15mA

V.S.W.R <2.0

Cable RG174

Connector SMA/MCX/FAKRA or others

Radome Material ABS

Mounting Method Magnet/Adhesive

Temperature -40℃~+85℃

Relative Humidity Up to 95%

Ingress Protection IP67

Vibration 10 to 55Hz with 1.5mm amplitude 2hours

Environmentally Friendly ROHS Compliant
